产品属性 属性值 搜索类似

制造商: Heraeus

产品种类: 工业温度传感器

工业温度传感器 Temperature Sensor type

工业温度传感器 Temperature Sensor type

RoHS:  详细信息

系列: W-EYK

产品: RTDs

电阻: 1 kOhms

描述/功能: RTD Temperature Sensor

安装风格: Wire Leads

商标: Heraeus Nexensos

工作温度: + 500 C

工作温度: - 40 C

产品类型: Temperature Sensors

工厂包装数量: 25

子类别: Sensors

工业温度传感器 Temperature Sensor type

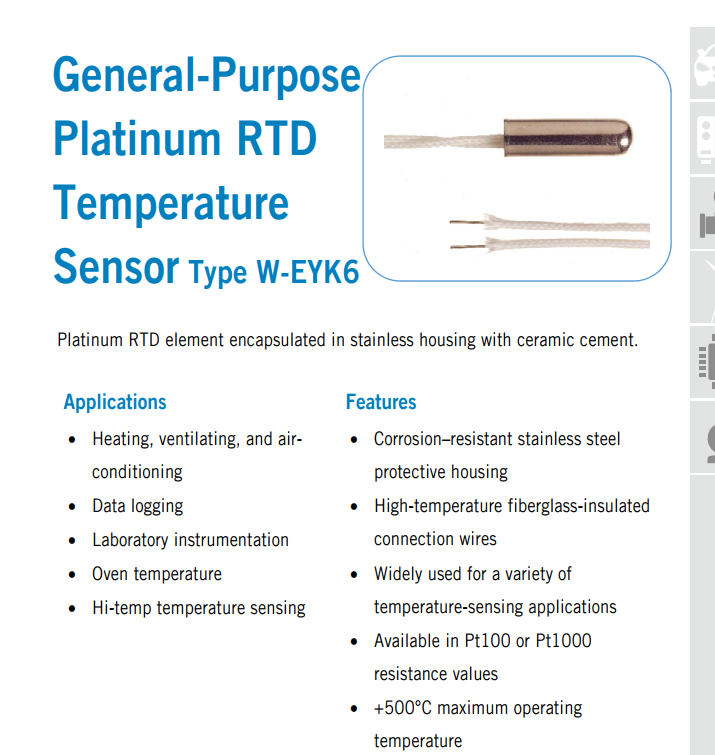

Heraeus Nexensos General Purpose Platinum RTD Temperature Sensors

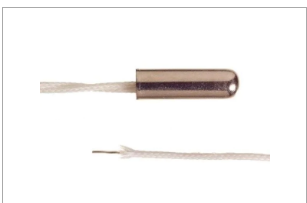

Heraeus Sensor Technology General Purpose Platinum RTD Temperature Sensors use ceramic cement to encapsulate a platinum RTD element inside corrosion-resistant, stainless steel housing. These sensors are available in Pt100 or Pt1000 resistance values, with fiberglass-insulated, 24AWG connection wires that feature 0.04Ω/ft (0.134Ω/m) resistance for each conductor. Heraeus Sensor Technology general purpose platinum RTD temperature sensors can operate between -40°C and 500°C temperatures. These features make this general purpose temperature sensor series ideal for heating, ventilation, air conditioning, data logging, lab instrumentation, and other high-temperature sensing applications.

FEATURES

工业温度传感器 Temperature Sensor type

Pt100 or Pt1000 resistance values available

Corrosion–resistant housing

-40°C to 500°C operating temperature range

Fiberglass-insulated, 24AWG, twisted pair connection wire - 300mm long

0.04Ω/ft (0.134Ω/m) wire resistance for each conductor
